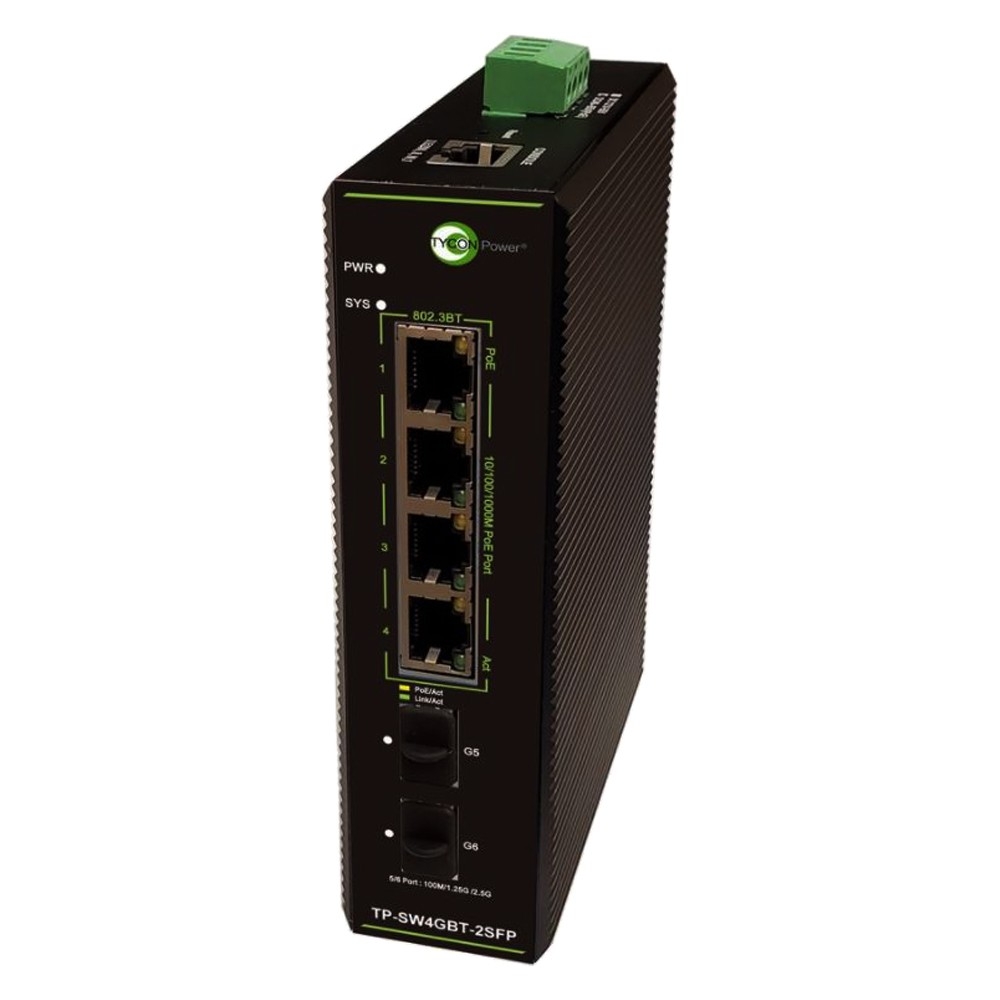

Tycon Power TP-SW4GBT-2SFP | 6 Port L2+ Manageable GigE Industrial 802.3at/bt PoE Network Switch, 4x 802.3at/bt PoE + 2x SFP 2.5GHz Fiber + 1x Serial Console Port, DIN Rail Mt, 12-57VDC Input
Product Highlights
Model#: TP-SW4GBT-2SFP
Sku: IT4688
MSRP: $359.99
In Stock
Your Price: $359.99
MODEL: TP-SW4GBT-2SFP
The TP-SW4GBT-2SFP Power over Ethernet (PoE) 6-Port Gigabit Switch from Tycon delivers high-speed Layer 2+ Ethernet performance with exceptional manageability and power capabilities. This advanced switch includes 4 GigE PoE++ (90W) ports and 2 SFP 2.5G ports, offering versatile connectivity options. The PoE ports, fully manageable via the user interface, provide a combined maximum power output of 360W, utilizing industry-standard 802.3at/bt detection for seamless and automatic operation.
The switch enhances security with protocols like SSH and SSL, ensuring safe access to the command interface. Users can control the interface through the serial console port or any Ethernet port, using a web browser, command line interface (CLI), TELNET, SSH, or SNMP.
Packed with L2+ features, this switch improves manageability, security, and performance. Key capabilities include VLAN, Port Mirroring, Port Isolation, IGMP Snooping, DHCP Snooping, LLDP, ARP Inspection, Storm Control, IP Source Guard, Access Control Lists, and PoE++ management. It also supports Spanning Tree, Jumbo Frames, Cable Diagnostics, and Ring Topology for enhanced functionality.
The switch complies with Green Ethernet standards, actively reducing energy consumption. It powers down Ethernet drivers on inactive ports and instantly restores active mode without packet loss when the link becomes active. It also adjusts signal strength based on cable length to optimize power efficiency.
Requiring a 48VDC to 57VDC input, the switch supports dual input wire-terminal connectors that accept up to 12AWG wire for reliable operation.
Built for durability, the switch supports Category 5 or higher Ethernet cables with network distances up to 100m. Fiber ports provide optical ranges up to 120Km. Shielded and grounded RJ45 connectors protect against interference, while built-in surge protection safeguards all ports. Conformal coating ensures moisture resistance, and the wide operating temperature range makes this switch ideal for outdoor and industrial environments.
Features
- PoE Switch
- TP-SW4GBT-2SFP
- Industrial Strength -40C – +80C Operating Temp
- 4 PoE++ (802.3bt 90W) and 2 fiber (SFP) Ports
- 10/100/1000 Gig Compatible
- Manageable via Console Port or IP
- Surge Protected Voltage/Ethernet Inputs
- Integrated DIN Rail Mount
- I.T.E. Power Supply, UL Listed
Applications
- Outdoor/Factory Network Installs
- Cameras/Wireless Radios
- PoE Lighting Applications
Specifications TP-SW4GBT-2SFP
| Ports | 4 Ports 802.3af/at/bt, PoE++ (90W) 2 SFP/LC 2.5Gigabit Fiber Ports 1 Console Port |
| Transmission Speed | 1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation |
| Fiber Transceiver Compatibility | 155M / 1.25G / 2.5G Multi Mode or Single Mode |
| Connections | Shielded RJ45, Shielded SFP/LC, Grounded to Case |
| Power Input | Vin 48VDC to 57VDC on Dual Input Wire Terminal (Max wire size 12AWG) |
| Self Consumption | < 5 watts typical |
| LED’s | Power:Red ; System:Green ; Ethernet Link:Green Flashing ; PoE:Amber ; Fiber:Green |
| PoE Protections | Over Voltage, Over Current, Short Circuit |
| PoE Pinout | 802.3af/at Ports = 1/2 V- ; 3/6 V+ 802.3bt Ports = 1/2,7/8 V- ; 3/6,4/5 V+ |
| Surge Protection | 6KV Normal Mode, 2KV Differential Mode |
| ESD Protection | 15KV Air, 8KV Touch |
| Management Methods | WEB, CLI, TELNET, SSH, SNMP |
| VLANS | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs); Port-based VLAN; 802.1Q tag-based VLAN |
| Port Management | Enable/Disable Port, Speed, Duplex, MTU Setting, Flow Control, Mirroring, In/Out Direction, Speed Limit |
| STP | Standard Spanning Tree (STP) 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s |
| Ring Network Protocol | ERPS (Ethernet Ring Protection Switching) |
| Link Aggregation | Static/Manual Aggregation, LACP Dynamic Convergence |
| IGMP v1/v2/v3 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 256 multicast groups |
| MAC Management | Add/Delete, MAC Address learning limit, Dynamic Aging Time Setting |
| Layer 3 Switching Functions | Virtual VLAN Interface, ARP, Static Router |
| ACL (Access Control List) | Based on source MAC, destination MAC, prototcol type, source IP, destination IP, L4 port number. Support |
| QOS (Quality of Service) | 802.1p(COS) Classification, DSCP Classification, Source IP/Destination IP/Port Number Classification. |
| Anti-Attack Support | DOS Defense CPU Protection, limit message send rate ARP Binding (IP, MAC, PORT) |
| Other Functions | LLDP, Add/Delete Users, Log user login/operation/status/events, Port security (Dying Gasp/SNMP Trap), Device Reset, |
| Jumbo Frame Support | 9.6K |
| Switching Capacity | 18 Gbps |
| Packet Forwarding Rate | 13.39Mpps |
| Forwarding Mode | Save and forward |
| Package Cache | 4M |
| RAM / Flash | 128MB / 16MB |
| Address Table | 8K MAC, self-learning |
| Network Protocols and Standards Summary | IEEE 802.3i 10BASET, 802.3u 100BASET, 802.3z 1000BASET 802.3x Flow Control 802.3ab Gigabit Media Independent Interface (GMII) 802.1q VLANs 802.1p (QOS) 802.3ad Link Aggregation Control Protocol (LACP) 802.3af /at /bt (PoE) 802.3az Energy-Saving IEEE G.8032 Ethernet ring protection (<50ms) (STP) 802.1d, (RSTP) 802.1w, (MSTP) 802.1s |
| Other Industry Standards | EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN-61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Environmental Protection | IP40 |
| Operating Temp | 40 to +85°C (-40 to 185°F) |
| Operating Humidity (RH) | 5% - 95% (non condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| MTBF | 100,000 hours |
| Certifications | CE, FCC, RoHS |
| Dimensions (LxWxH) | 155*117*38(mm) (6.1 x 4.6 x 1.5”) |
| Weight | 0.6kg (1.25lb) |
